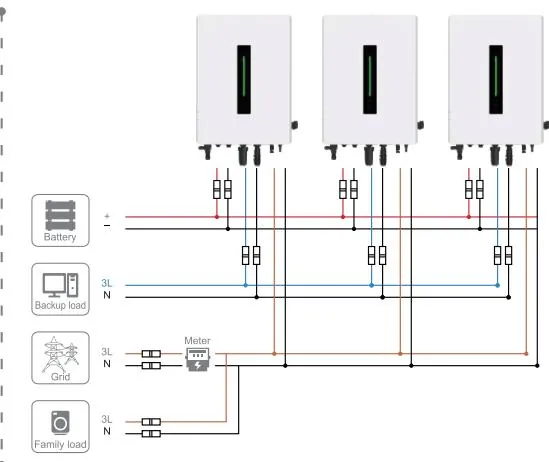

Parallel application
| MODEL | EAHI10KTH | EAHI15KTH | EAHI20KTH |
|---|---|---|---|
| PV input | |||
| Max. input power | 20kW | 30kW | 30kW |
| Max. input voltage | 1000Vdc | ||
| Rated input voltage | 650Vdc | ||
| Start-up voltage | 180Vdc | ||
| Min. operating voltage | 160Vdc | ||
| MPPT voltage range | 160~950Vdc | ||
| Full power MPPT voltage range | 625~800V | ||
| Max. input current per MPPT | 16A/16A | 16A/32A | |
| Max. short-circuit current per MPPT | 24A/24A | 24A/48A | |
| Number of MPPTs | 2 | ||
| Number of input strings per MPPT | 1/1 | 1/2 | |
| Battery input | |||
| Battery type | Lithium battery | ||
| Voltage range | 150~600Vdc | ||
| Max. charge/discharge current | 25A | 37.5A | 50A |
| AC input and output(grid) | |||
| Max. apparent power of grid | 15kVA | 22.5kVA | 30kVA |
| Max. input current | 22.8A | 34.2A | 40.0A |
| Input voltage range | 320~480Vac | ||
| Input frequency range | 50±5Hz/60±5Hz | ||
| Rated output power | 10kW | 15kW | 20kW |
| Max. output apparent power | 11kVA | 16.5kVA | 22kVA |
| Rated output voltage | 3/N/PE, 380Vac/400Vac | ||
| Rated output frequency | 50Hz/60Hz | ||
| Rated output current | 15.2A/14.4A | 22.8A/21.7A | 30.4A/29.0A |
| Max. output current | 16.7A/15.8A | 25.1A/23.8A | 33.5A/31.8A |
| Power factor | >0.99(0.8 leading~0.8 lagging) | ||
| THDi | ≤3%(@ rated power) | ||
| Generator input | |||
| Max. input power | 10kW | 15kW | 20kW |
| Max. input current | 15.2A | 22.8A | 30.4A |
| AC output(backup) | |||
| Rated output power | 10kW | 15kW | 20kW |
| Max. apparent power | 10kVA | 15kVA | 20kVA |
| Rated output voltage | 3/N/PE, 380Vac/400Vac | ||
| Rated output frequency | 50Hz/60Hz | ||
| Rated output current | 15.2A/14.5A | 22.8A/21.7A | 30.4A/29.0A |
| Max. output current | 15.2A | 22.8A | 30.4A |
| THDv | ≤3%(linear load) | ||
| Switching time | ≤10ms | ||
| Efficiency | |||
| Maximum efficiency | 98.2% | ||
| MPPT efficiency | 99.9% | ||
| Protections | |||
| Protections | Over/under voltage, over/under frequency, overload, output short-circuit, over-temperature, residual current monitoring unit, output overcurrent, insulation resistance detection, anti-islanding, surge protection | ||
| Surge protection | DC Type II/AC Type III | ||
| Others | |||
| Dimensions(W×H×D)(mm) | 500×680×270 | ||
| Packaged dimensions (W×H×D)(mm) | 615×885×370 | ||
| Net weight(kg) | 41 | ||
| Gross weight(kg) | 47 | ||
| Parallel operation | Supports 6 units in parallel connection | ||
| Topology | Non-isolated | ||
| IP rating | IP66 | ||
| Operating temperature | -25°C~+60°C | ||
| Cooling mode | Natural cooling | Smart cooling | |
| Altitude | 3000m | ||
| Noise level(1m) | ≤25dB | ≤45dB | ≤50dB |
| Installation method | Wall-mounted | ||
| Standards | |||
| Grid connection | VDE 0126, EN50549, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018 | ||
| Safety regulation | IEC/EN 62109-1/-2 | ||
| EMC | EN 61000-6-1/-2/-3/-4 | ||
