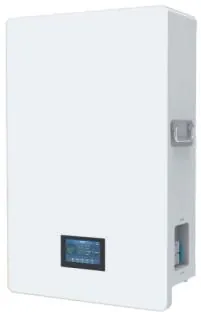

Wall-mounted Lithium-ion Battery System
| Model | EHB24200G8S2P | EHB48100G16S1P |
|---|---|---|
| Cathode material | LiFePO4 | |
| Rated voltage/V | 25.6 | 51.2 |
| Rated capacity/Ah | 204 | 102 |
| Rated energy/kWh | 5.22 | 5.22 |
| Standard parallel unit/P | 1 | 1 |
| Output power/kW | 3 | 5 |
| Charge voltage/V | 29.2 | 58.4 |
| Operating voltage range/V | 20.8~29.2 | 41.6~58.4 |
| Max. charge current/A | 100 | 50 |
| Max. discharge current/A | 100 | 100 |
| Operating temperature/°C | Charge temperature/°C | 0~55 |
| Discharge temperature/°C | -20~55 | |
| Weight/kg | 45 | |
| Dimension(W×D×H)(mm) | 440×170×690 | |
| IP rating | IP21 | |
| Certification | UN38.3, CE-EMC | |
| Cooling method | Natural cooling | |
| Communication | CAN/RS485 | |
| Cycle life | ≥6000 Cycles@0.5C/90%DOD@70%EOL, 25±2°C | |
| Display configuration | ON/OFF button, LCD touchscreen |
